Casing Design
Advanced triaxial stress analysis supporting fully automated well design
The Casing Design module in Oliasoft WellDesign offers a full triaxial casing design solution, supporting load simulations and multi-string analysis from all industry-standard drilling, production, and completion operations. Compliant with all regulatory requirements and compatible with NORSOK, ISO, and API standards.
- Design your well with ease using casing catalogs, offering comprehensive support for material, grade, and rating selection.
- Apply predefined load cases, custom loads, production and completion loads for full well lifecycle simulations.
- Benefit from an intuitive, user-friendly interface that supports both customizable and standardized workflows, ensuring significant time savings and an enhanced user experience.
- Explore our automatic design capabilities through automated workflow and rule-based design.
- Our Open API framework allows users to extend functionality (as required) through third-party applications.

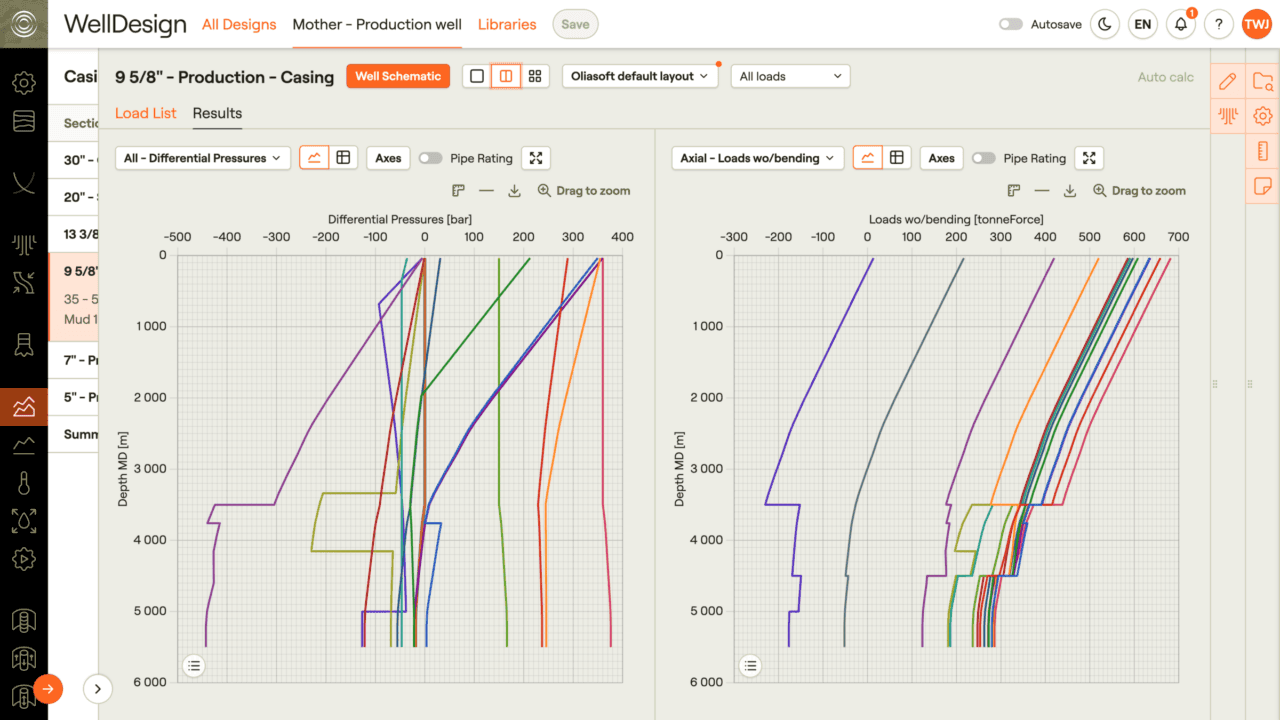

![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Casing_Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=4c434390e7d1ffcbcd7d8efe8d2cccaa 640w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Casing_Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=333cc6867455b57802f12091d6bb729f 800w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Casing_Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=92f95c73ac672322a1034662b47dc6d8 960w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Casing_Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=f4d3c86971eadd280fcceb205f0d775b 1120w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Casing_Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=353504619b60ccf63a1a24e792e2b5fb 1280w)

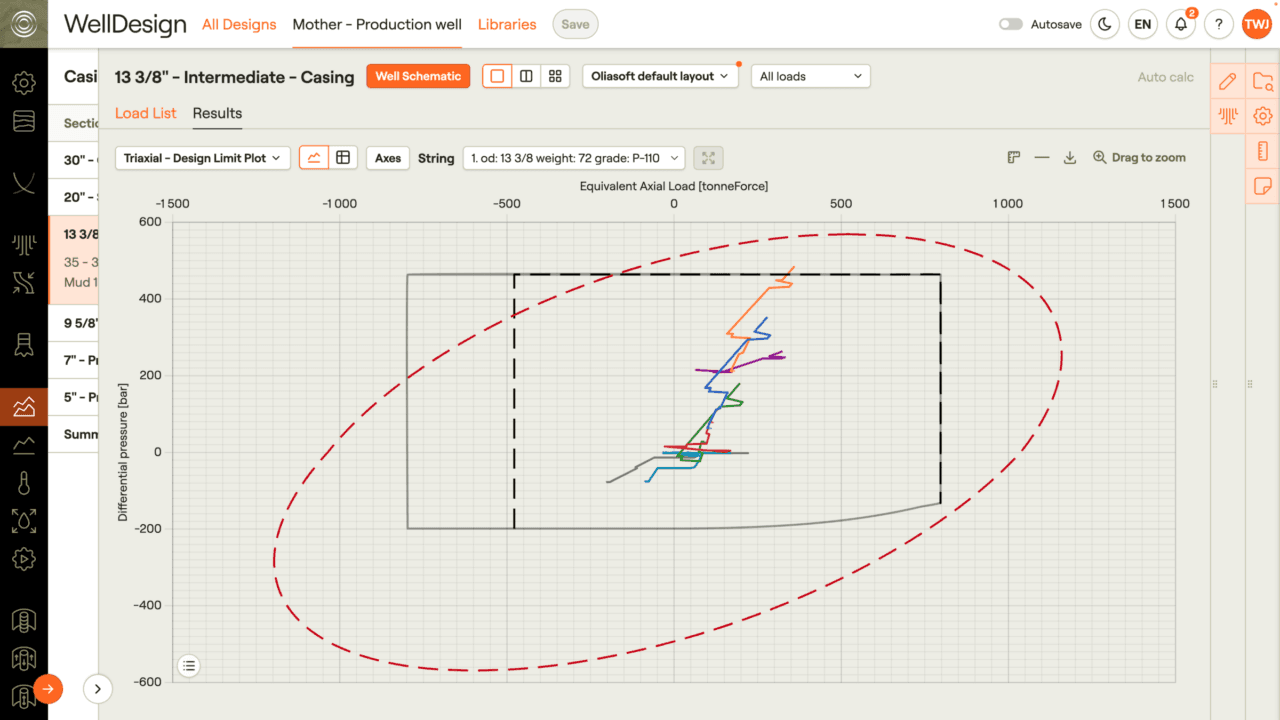

![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Casing-Design/Casing-Design-limit-plot.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=f11cf642e60476c2f8f2fe7b9ac0e0e9 640w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Casing-Design/Casing-Design-limit-plot.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=17ffc2e35a8a995b1320c10e2686fbd4 800w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Casing-Design/Casing-Design-limit-plot.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=da08aa42e666742d388416c8cf2a705f 960w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Casing-Design/Casing-Design-limit-plot.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=e70cd71c0b2c68b48383f38bf148a608 1120w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Casing-Design/Casing-Design-limit-plot.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=fda8b4195ba20adbf167163342d14021 1280w)

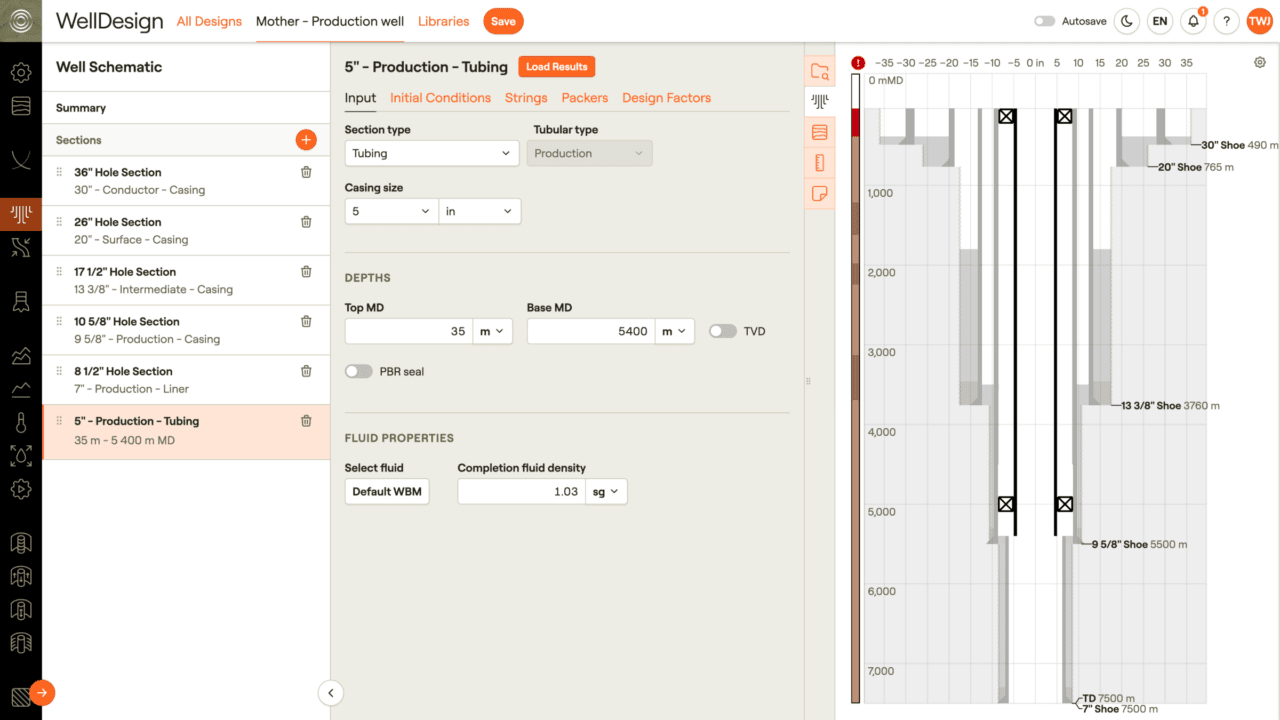

![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Production-Tubing.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=7cbcb7946a71e9c30c63f064a3741157 640w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Production-Tubing.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=48ca3c13b82c7c09070e9f0e9551e521 800w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Production-Tubing.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=999365660dcb8c87a018c64cb8740b03 960w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Production-Tubing.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=9c17d9010662e27c951272990e48d723 1120w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Production-Tubing.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=faa3f2c4ae7f8885010df66ee9e71fcf 1280w)
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Well-Scematics-kick-tolerance.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=1d7af1607a452ae8cfc3fc2caacbd777 640w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Well-Scematics-kick-tolerance.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=bf49f7c369d47a81d80bca93176fd51e 800w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Well-Scematics-kick-tolerance.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=eb298cf2e77a4b5682e5418104b7f7db 960w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Well-Scematics-kick-tolerance.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=c22e9086cb2429310f2536f257856e2e 1120w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/Well-Scematics-kick-tolerance.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=9fa6f691a0cbe417cc54fc545f20f210 1280w)
Key features
-
Full triaxial casing design
-
Compliant with NORSOK, ISO and API standards
-
Intuitive and user-friendly user interface
-
Customizable workflow
-
Industry standard casing loads generation
-
Unlimited configuration options for packers and cement
-
Handles point loads, anisotropy and asymmetry
-
Automation through rule-based design
Streamlined well configuration design with integrated libraries
Build and design your well geometry effortlessly with our intuitive interface and helpful illustrations, utilizing casing and connection catalogs from our integrated libraries module.
The Oliasoft library provides full flexibility, allowing for precise material definitions and rating calculations compliant with API standards (API 5C3), or defining special ratings or rating envelopes.
Seamlessly integrate Oliasoft libraries with any internal or external database using our accessible Open APIs, ensuring a smooth transition and an efficient work process.
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Streamlined-well-geometry-design-with-integrated-libraries.jpg?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4166&fp-y=0.5049&h=286&q=75&w=400&s=c1bca3fb48785c45820bc15ef43031c4 400w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Streamlined-well-geometry-design-with-integrated-libraries.jpg?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4166&fp-y=0.5049&h=464&q=75&w=650&s=47db12de78e39fab89359285f430fc6c 650w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Streamlined-well-geometry-design-with-integrated-libraries.jpg?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4166&fp-y=0.5049&h=643&q=75&w=900&s=7dbe26c0818cd7c8d47a99b2848664bb 900w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Streamlined-well-geometry-design-with-integrated-libraries.jpg?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4166&fp-y=0.5049&h=821&q=75&w=1150&s=7e6a9901a92e81e57874397ae8081bb1 1150w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Streamlined-well-geometry-design-with-integrated-libraries.jpg?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4166&fp-y=0.5049&h=857&q=75&w=1200&s=a6ec6c0db7f166f7991293bd5740edac 1200w)

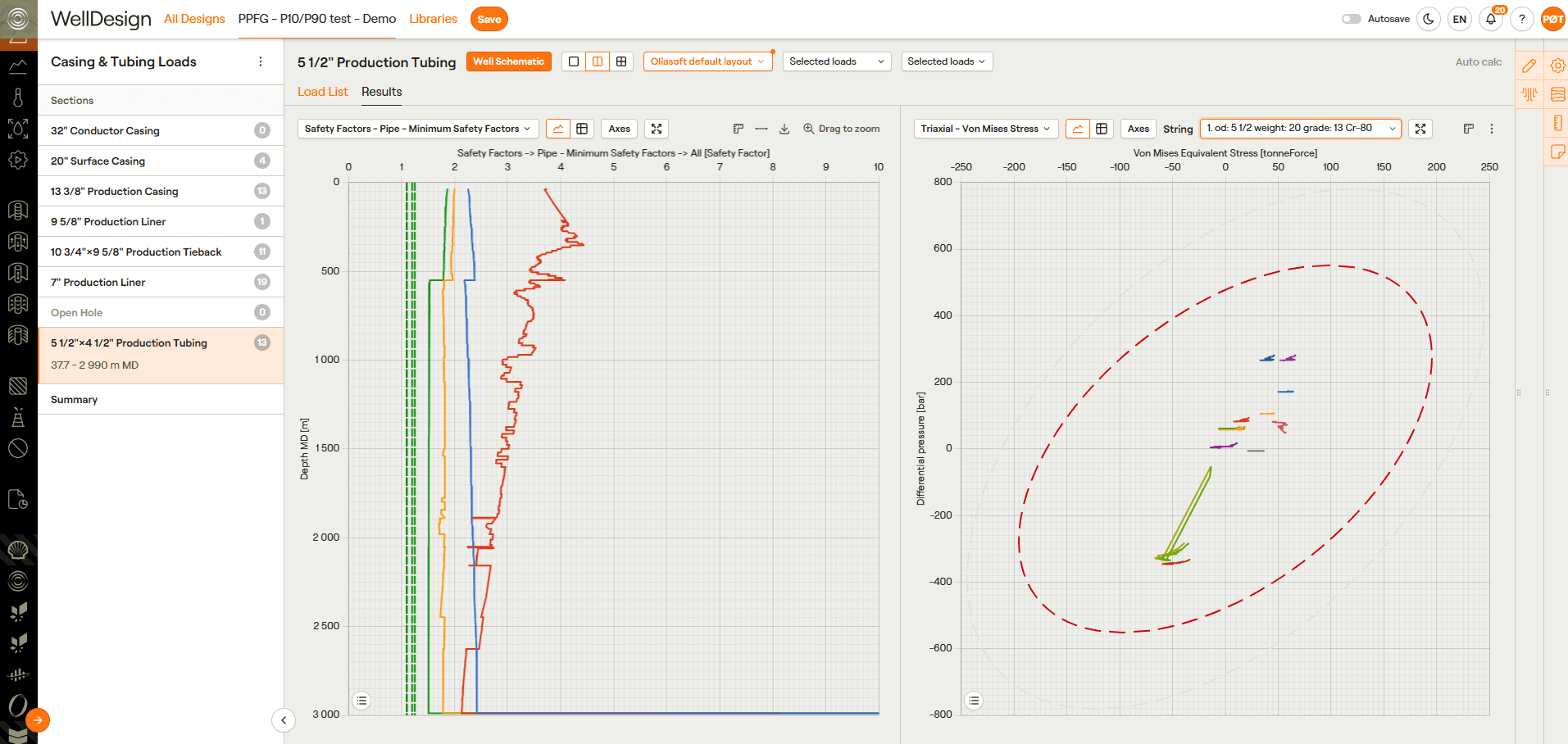

Advanced load simulation capabilities
Secure your design integrity by simulating industry standard loads by designing advanced scenarios with custom loads, adjusting internal, external, and or temperature profiles.
Apply predefined profiles with custom or simulated profiles, offering unparalleled flexibility in generating load scenarios tailored to your specific needs.
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Advanced-load-simulation-capabilities.jpg?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4504&fp-y=0.5067&h=286&q=75&w=400&s=ae3107fafa9856e33172ee11f53e980b 400w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Advanced-load-simulation-capabilities.jpg?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4504&fp-y=0.5067&h=464&q=75&w=650&s=5c307293859340ab48a2fe5b75fd471d 650w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Advanced-load-simulation-capabilities.jpg?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4504&fp-y=0.5067&h=643&q=75&w=900&s=54e924661ee3b8f67e3cfe91792a64c7 900w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Advanced-load-simulation-capabilities.jpg?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4504&fp-y=0.5067&h=821&q=75&w=1150&s=2c1034f400aba60d2f9b336ed92b59a1 1150w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Advanced-load-simulation-capabilities.jpg?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4504&fp-y=0.5067&h=857&q=75&w=1200&s=35564bd571cebc047ec3c5467b1d4700 1200w)
Seamless integration of production and completion simulations
Directly apply production and completion simulations from our Temperature Simulator as load cases or by using simulated profiles for predefined loads, multi-string analysis, and APB simulations.
Our Triaxial Casing Design engine adeptly handles point loads, anisotropy, and asymmetry, ensuring accurate calculations.
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Seamless-integration-of-production-and-completion-simulations.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=286&q=75&w=400&s=02f0a59db9a5d91d31b71c58b4353e8f 400w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Seamless-integration-of-production-and-completion-simulations.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=464&q=75&w=650&s=679f05a21c116289a9f001cc0a8d8dbf 650w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Seamless-integration-of-production-and-completion-simulations.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=643&q=75&w=900&s=934baf1c9f6855b62ffc6623652867af 900w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Seamless-integration-of-production-and-completion-simulations.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=821&q=75&w=1150&s=cccf2d194c52eed64fb4e63ae2afdf89 1150w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Seamless-integration-of-production-and-completion-simulations.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=857&q=75&w=1200&s=4b9299b4672bae1ebbe97421c32232fe 1200w)

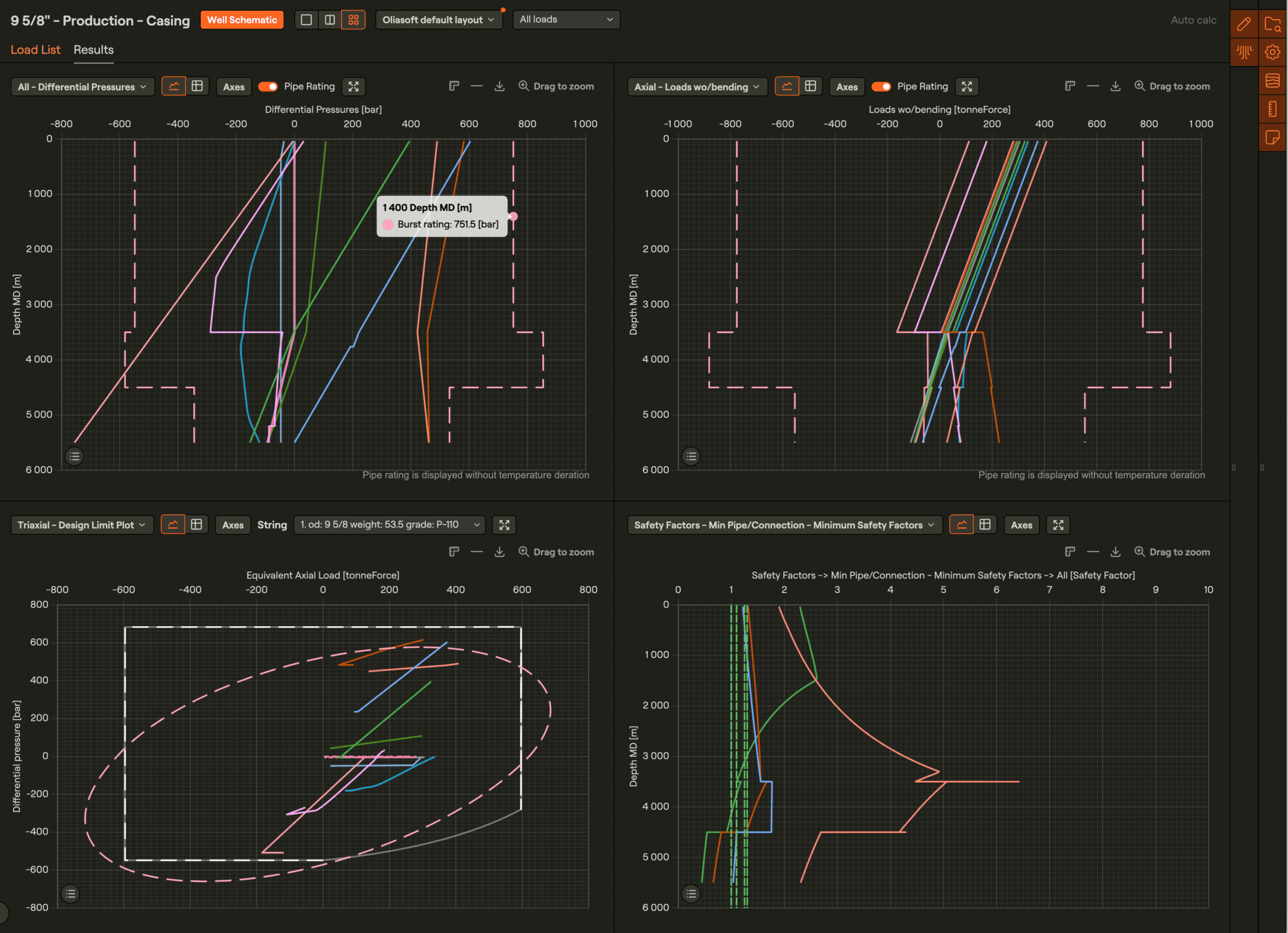

Streamlined well planning and customized workflows
Save time and standardize your well planning with a customizable workflow. Define load case templates for different sections and tailor load case rules to meet your company's specific requirements. With just one click of a button, generate a complete load picture of the entire well.
Define company and user-specific workflows and result dashboards for standardized design and evaluation. Alternatively, delve into detailed results presented in readable and accessible charts and tables.
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Customized-workflow-for-time-saving-automation_2.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.3944&fp-y=0.4506&h=286&q=75&w=400&s=a1a577f4d6381e04fa80864b7c5d7385 400w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Customized-workflow-for-time-saving-automation_2.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.3944&fp-y=0.4506&h=464&q=75&w=650&s=36f6557edafe6ad402d0347eb079ab1a 650w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Customized-workflow-for-time-saving-automation_2.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.3944&fp-y=0.4506&h=643&q=75&w=900&s=afc4f96a412230e4506821d22f999f46 900w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Customized-workflow-for-time-saving-automation_2.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.3944&fp-y=0.4506&h=821&q=75&w=1150&s=19cf23516897e24909a20ccad8ae6a56 1150w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Casing-Design/Customized-workflow-for-time-saving-automation_2.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.3944&fp-y=0.4506&h=857&q=75&w=1200&s=402312ddbdf86e40f416001863e88386 1200w)

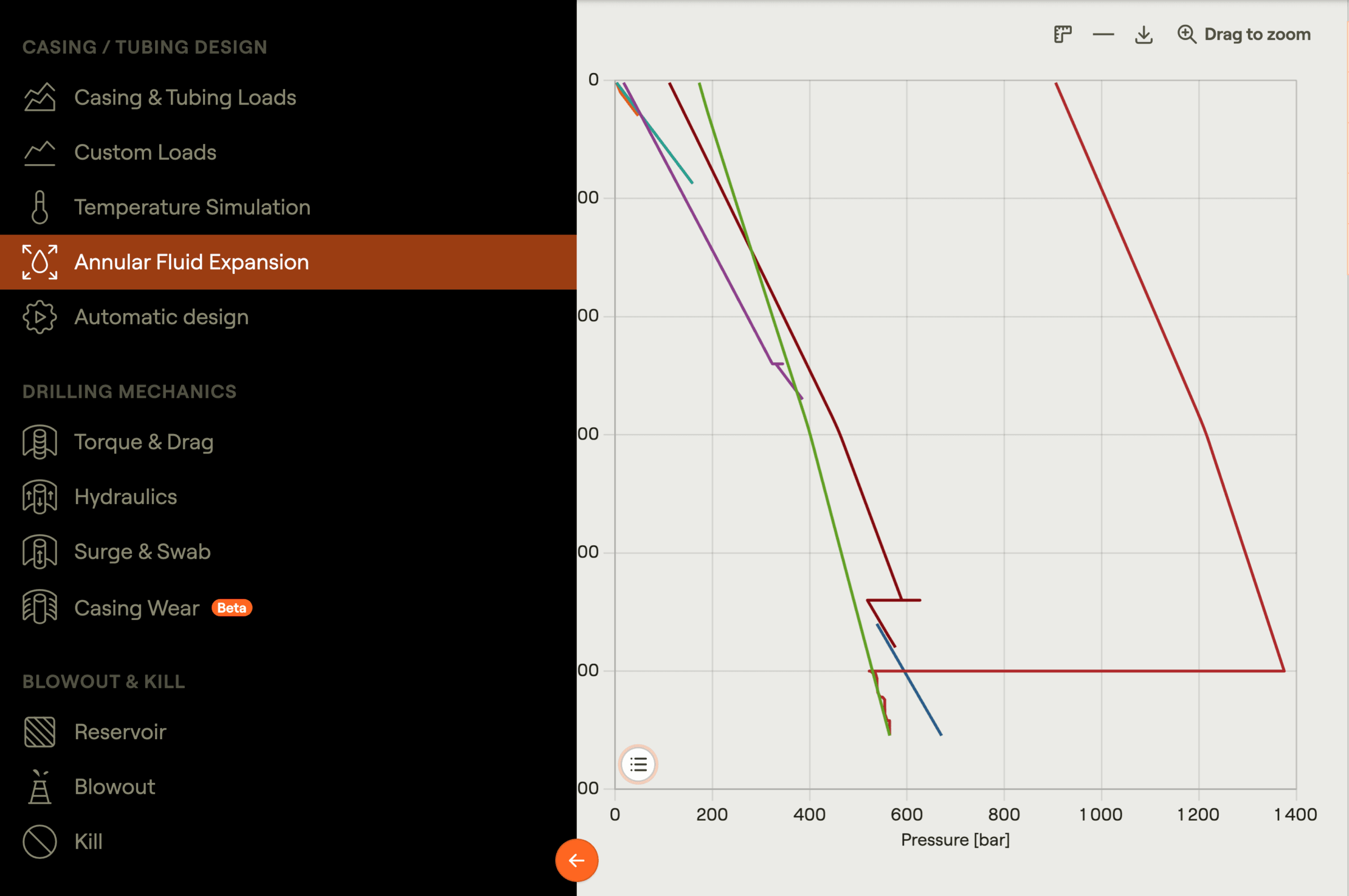

Secure well integrity with Oliasoft WellDesign's Annular Fluid Expansion module
Oliasoft WellDesign's Annular Fluid Expansion (AFE) module is engineered to address the challenges posed by fluctuating fluid temperatures during well operations. By accurately predicting fluid expansion and contraction, the AFE module mitigates the risk of well integrity incidents.
