Blowout & Kill
Augmented well safety and efficiency with integrated reservoir, blowout and kill simulations
Oliasoft WellDesign’s Reservoir, Blowout & Kill Simulation modules enable users to simulate potential blowout rates across diverse flow paths for multiple fluids. This facilitates the construction of corresponding kill procedures.
Integrated simulation engines empower users to pinpoint reservoir uncertainties and conduct sensitivity analyses. Specifically, optimizing casing design focusing on blowout and kill considerations.
Our module is capable of conducting both steady-state blowout and transient kill simulations seamlessly through a unified interface.
Key features
-
Zero derivative and finite volume dynamic kill method
-
Automated kill sensitivity model investigating mud weight and pump rate ranges
-
A full weighted rates model compliant with latest guidelines and NORSOK D-010 for environmental calculations
-
A reservoir module able to work with or independently of the well design according to user requirements
-
Reservoir module includes a range of inflow models including oil and gas, and explicit PI and IPR definitions
-
Multiple reservoir definitions for two-phase oil & gas and gas condensate fluid characteristics
Key benefits of in-house well control with Oliasoft’s Blowout & Kill module
Early issue detection
Identify potential blowout problems early, giving your team ample time to prepare effective solutions.
Integrated risk management
Seamlessly managing changes throughout your well design and mitigating blowout risks with our integrated software, ensuring a controlled and systematic approach to risk management.
Enhanced understanding & ownership
Foster deeper understanding and ownership within your well delivery team, balancing production opportunities with potential risks for better decision-making.
Time and cost efficiency
Perform clear in-house analyses to save on consultancy fees and reduce wait times. When external advice is needed, ask precise, informed questions.
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/BK-Reservoar-IPR.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=250b3d9768c47248c7b9054fe0514200 640w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/BK-Reservoar-IPR.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=9008f6f5d633b79084ff84e8c3ad4462 800w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/BK-Reservoar-IPR.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=eb0d816a127e0866735aebd990a053e4 960w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/BK-Reservoar-IPR.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=4033ae5770ca958c30937ab5393c8a7b 1120w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/BK-Reservoar-IPR.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=a219271bfb4663977fbaabd842936641 1280w)
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Blowout-Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=3cc960dbc63eea842877eb398b34f7a9 640w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Blowout-Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=1b377c57afd0ade214a37a943ced3a39 800w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Blowout-Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=a5b5df4da47a81023c05f8036a9329fa 960w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Blowout-Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=c0d6101f325de57ae2a829020f980b6f 1120w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Blowout-Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=89dbcf120a7d624346ce32d0ba0330ec 1280w)
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Screenshot-2023-12-15-at-15.36.18.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=d6c26aea6739cfbe668d2f225c891e2a 640w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Screenshot-2023-12-15-at-15.36.18.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=84fb44315ced4f9dc95daf9645e9f1bd 800w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Screenshot-2023-12-15-at-15.36.18.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=511a3a84970f8f47d49bde26b2e26423 960w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Screenshot-2023-12-15-at-15.36.18.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=c83dcc281644f66791a73046fa9841f5 1120w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Screenshot-2023-12-15-at-15.36.18.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=c8247dc6e555b9b6187237b7561faa8e 1280w)
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Kill-Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=5c85e2f703ebf88865cf8287ef3d5878 640w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Kill-Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=97cd2a18fca4e84e32ec8160befa8fe3 800w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Kill-Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=3b7a3c4982eb0cf5fbd6cd618c075b7d 960w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Kill-Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=dfe994a7b85a684b85b4e4d7b06473b3 1120w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Temp-screenshots/BK/Kill-Results.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=9212d825cdb40466e214d45d1ec20ab7 1280w)
Precise blowout potential determination and dynamic kill simulation for comprehensive well safety compliance
Oliasoft WellDesign’s Reservoir, Blowout & Kill Simulation modules accurately determine the blowout potential of a well design. This allows users to establish the absolute open flow potential at the very start of the process.
Our Blowout & Kill module is developed in partnership with the Institute for Energy Technology (IFE). Our engines can simulate dynamic kill rates for all scenarios. This includes pumping through existing drill strings, or through a relief well intersecting the blowing well at a chosen depth. The simulation combines the static head of a kill fluid with frictional pressure losses. The blowout and kill engines can simulate the mixed flow of multiple fluids from several reservoirs.
Independent reservoir module
Our independent Reservoir Module empowers users to design reservoirs autonomously, easily exploring Inflow Performance Relationship (IPR) curves and Absolute Open Flow (AOF) potential. Users can seamlessly transfer reservoir data into the well design dataset. IPR curves can be derived from reservoir inputs or directly input by users, either as curves or straight-line Productivity Index (PI). Upon transfer to the well design dataset, relevant pressures, hole sizes, and depths are automatically extracted from corresponding modules.

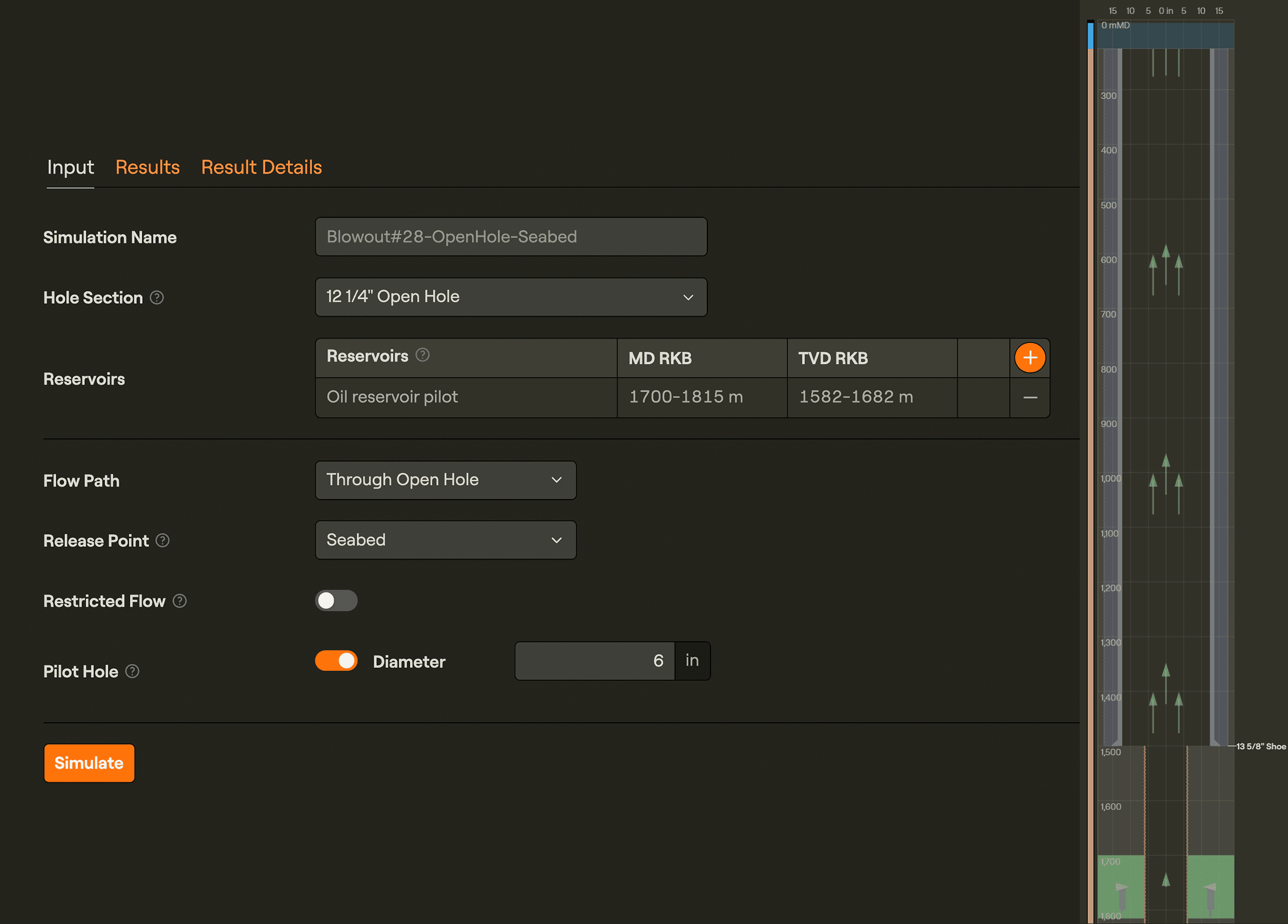

Blowout module handling multiple reservoirs and fluids
The Oliasoft Blowout module efficiently calculates blowout rates across diverse flow paths, accommodating multiple reservoirs containing various fluids. Rapid processing of weighted oil rates facilitates environmental calculations, while users can opt for Monte Carlo simulations when reservoir input data are uncertain.

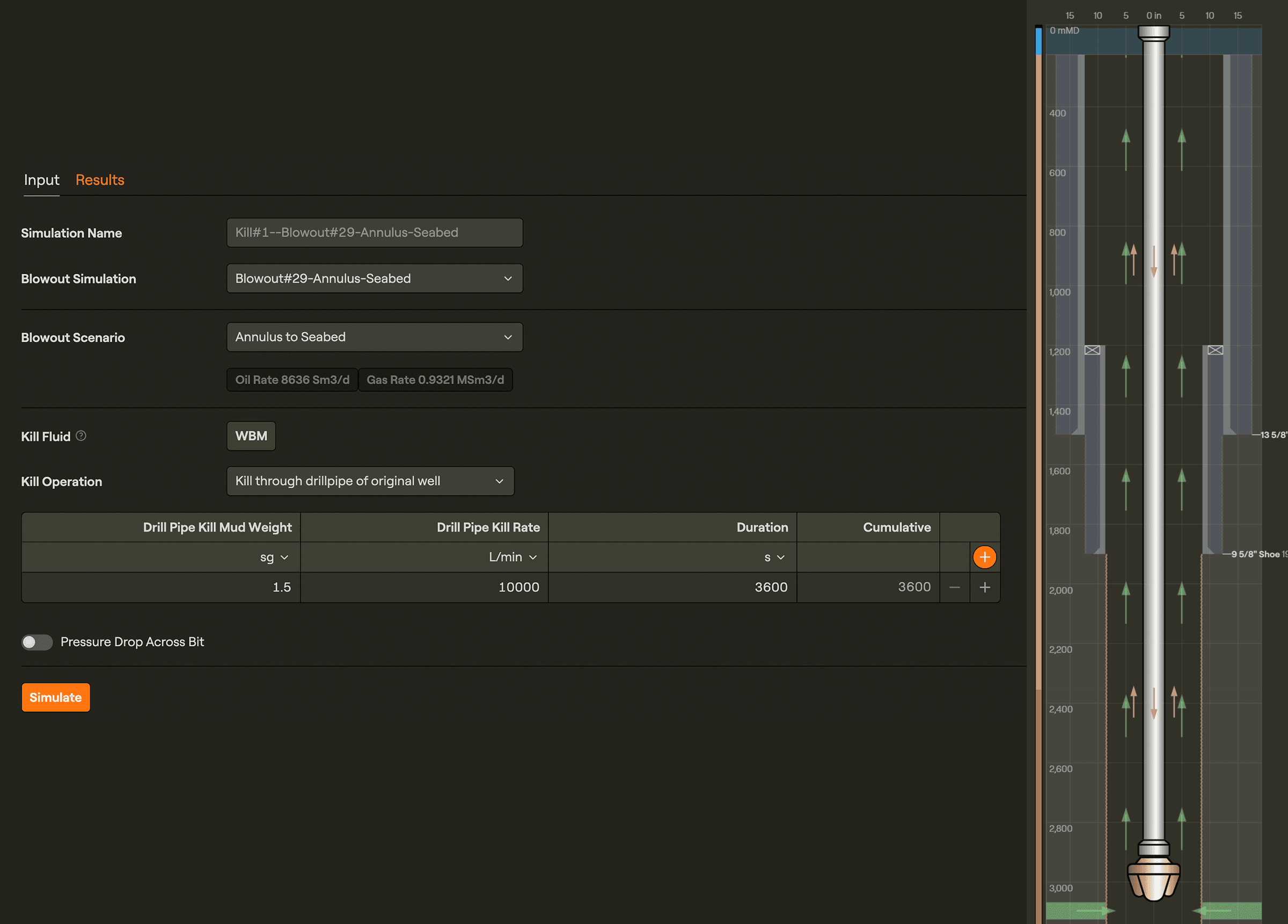

Integrated kill simulations directly linked to the blowout results
Oliasoft offers a transient kill module seamlessly integrated with the blowout module, eliminating the need for software switching. A sensitivity feature recommends viable kill rates and mud weights based on 25 simultaneous kill simulations. Users can select from various pump paths, enhancing the optimization of the kill procedure. Additionally, the pump pressures necessary down the relief well are automatically computed and visually represented on a pump curve plot Additionally, relief well casing design adjustments can be made to minimize pressure loss.
Seamless integration for enhanced control and contingency planning
End-to-end integration with the other modules in Oliasoft WellDesign enables automatic recalculations of blowout and kill scenarios in response to design changes anywhere in the calculation chain.
Drilling engineers gain comprehensive control over simulation inputs and settings by integrating blowout and kill simulations into the well planning software. This inherent integration ensures informed decision-making at every stage of the process.

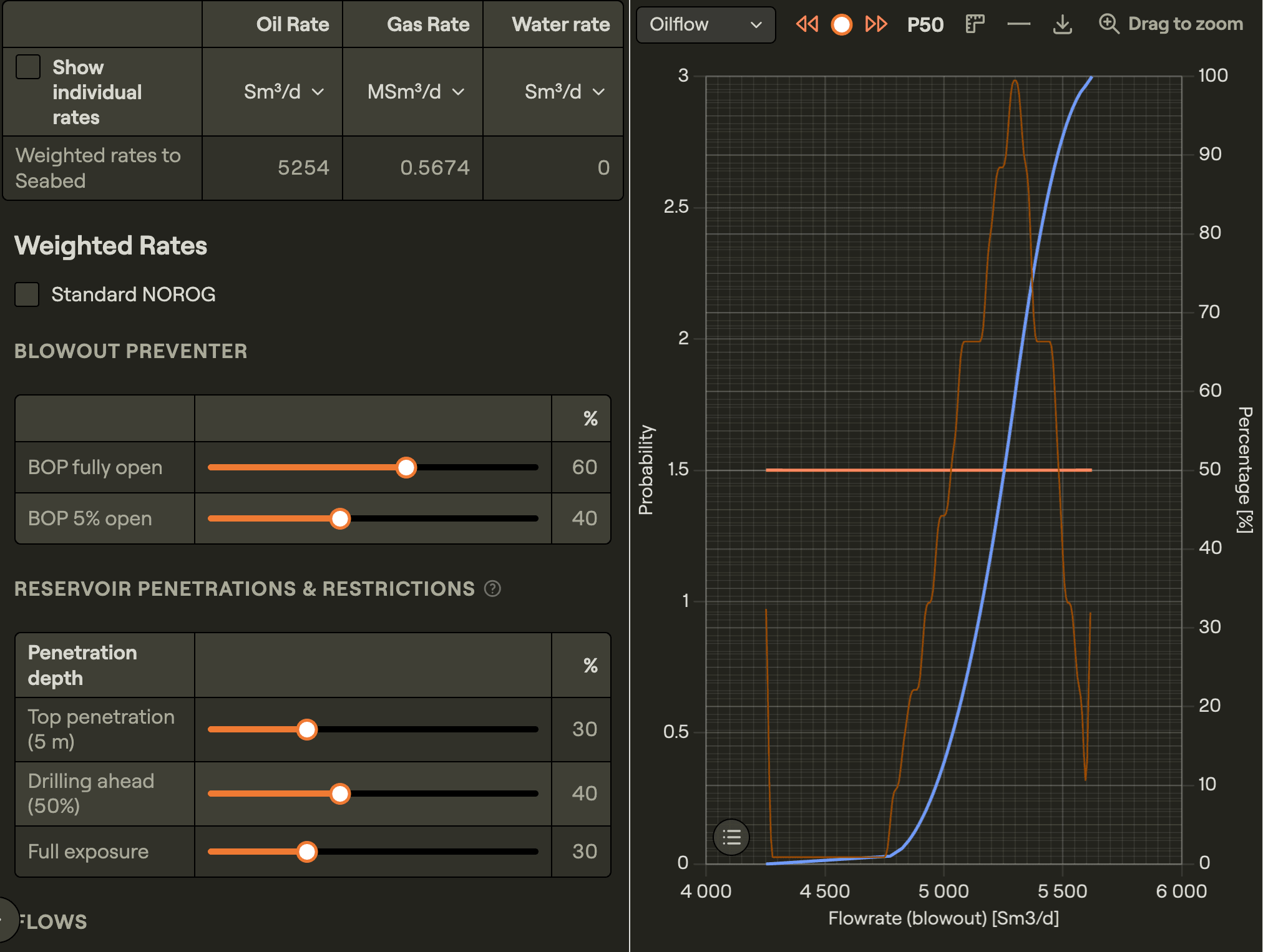

Stochastic blowout calculations
Our blowout functionality performs stochastic blowout calculations and weighted oil rates according to Norwegian Oil and Gas Association (Norsk Olje & Gass) guidelines. It can be utilized to verify that oil companies drilling in the United States comply with API standard 53, regulated by the Bureau of Safety and Environmental Enforcement (BSEE).
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-13.32.37.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4988&fp-y=0.5158&h=286&q=75&w=400&s=dff7ddf2edb1f01a8bf13982b9457559 400w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-13.32.37.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4988&fp-y=0.5158&h=464&q=75&w=650&s=6ec59eb8fdc1a535250810d079772598 650w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-13.32.37.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4988&fp-y=0.5158&h=643&q=75&w=900&s=be19313127b567ebff17891b963bde6c 900w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-13.32.37.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4988&fp-y=0.5158&h=821&q=75&w=1150&s=10da35f31f747447d8aa37624a2896ba 1150w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-13.32.37.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.4988&fp-y=0.5158&h=857&q=75&w=1200&s=c66191bc1a76410517c152241662c72c 1200w)

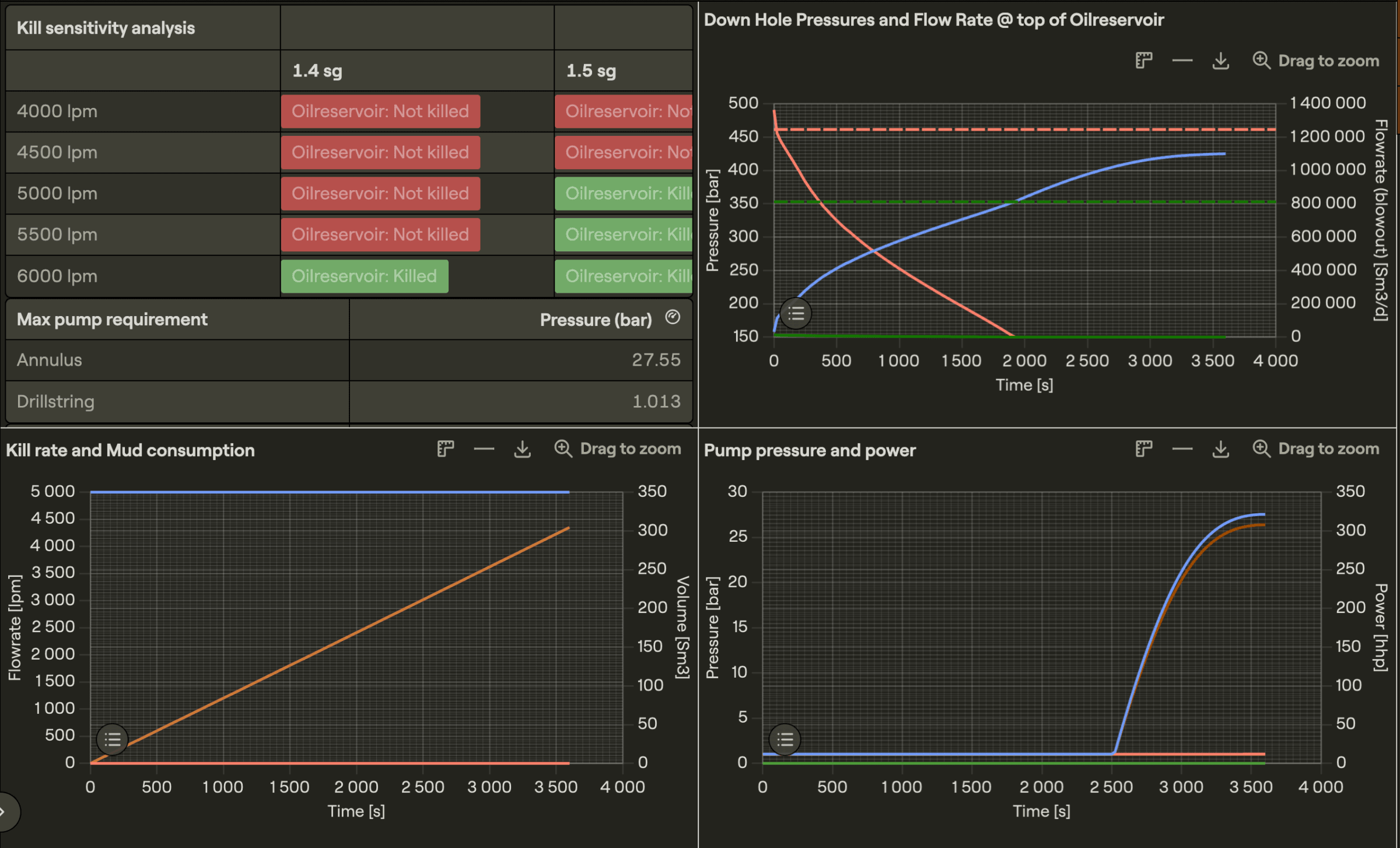

Automated sensitivity studies on mud weight and pumping rates
Our kill simulation engine identifies mud weight and pumping rate combinations that will allow wells to be killed through a single relief well. Run automated sensitivity studies investigating a range of mud weight and pumping rate combinations.
Kill chosen scenarios using pump pressure and pump power results generated by predefined kill mud weight and kill rates. Use dynamic photos to visualize downhole pressure and flow rate, pump pressure and power, kill rate and mud consumption, and fluid distribution in the well during the kill operation.
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-13.53.28.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=286&q=75&w=400&s=8e7eae2784bd11a184f297238c66cd0a 400w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-13.53.28.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=464&q=75&w=650&s=625f809218034e295802c2fd60496a4a 650w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-13.53.28.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=643&q=75&w=900&s=efb86cebd344bd8bca30a5d2e5f67c59 900w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-13.53.28.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=821&q=75&w=1150&s=fa615b3067eb8bafb8491664dad8ddda 1150w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-13.53.28.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=857&q=75&w=1200&s=9e28ee8626fdcf4f993e1c1a37bd089b 1200w)

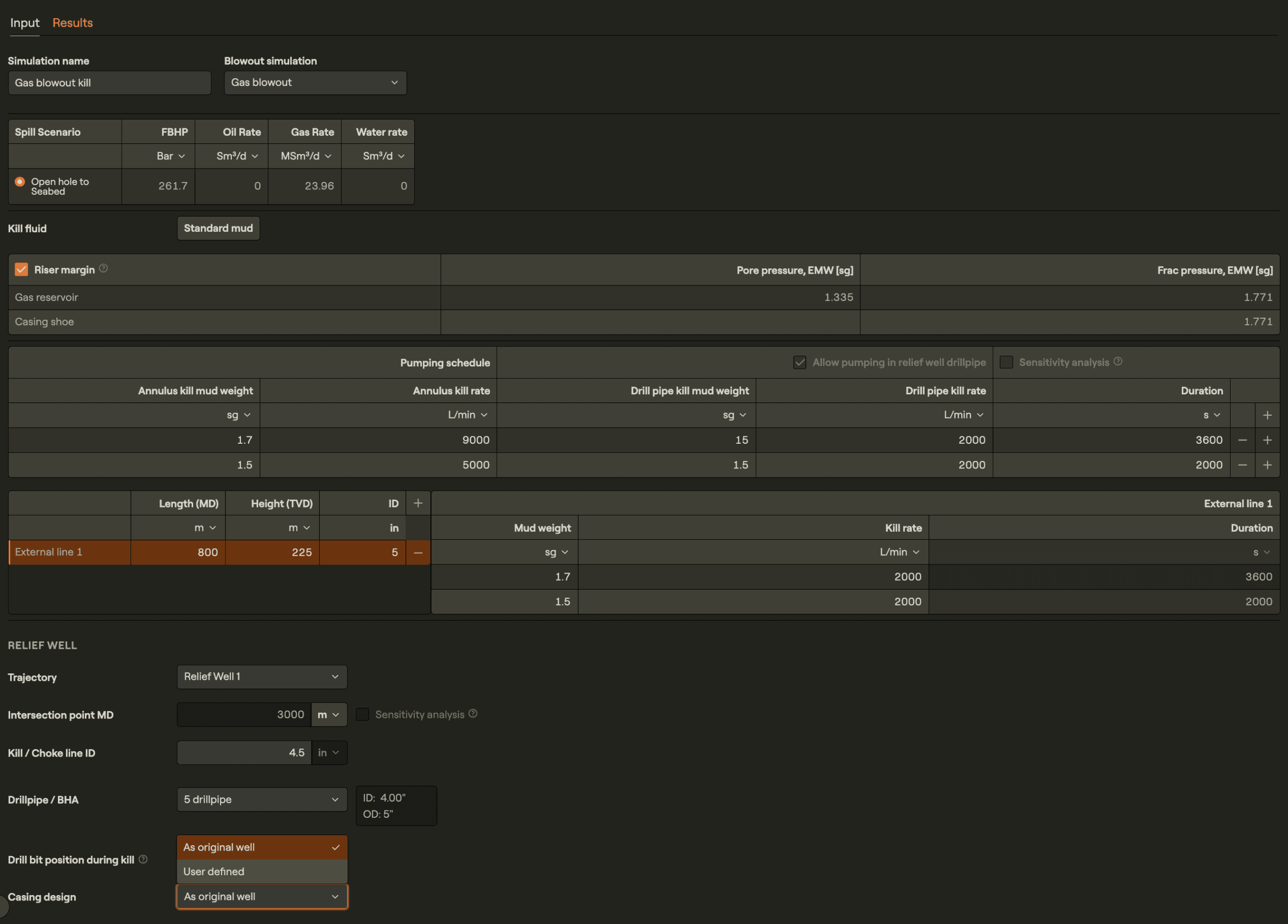

Quick investigation of alternative pumping programs
Quickly perform a range of sensitivities to investigate alternative pumping programs, including pumping through the drill pipe and external pump sources, and perform staged kill operations.
Investigate different intersection points with ease and alter relief well casing designs.
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-14.07.17.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=286&q=75&w=400&s=7211185336c44d19f3d4405bc31921ab 400w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-14.07.17.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=464&q=75&w=650&s=a198c357b5d57505ba74629faa11000b 650w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-14.07.17.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=643&q=75&w=900&s=1bda9b5a9840957bacce98b32548bee2 900w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-14.07.17.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=821&q=75&w=1150&s=9940bedcfb4ed3a81c25db230f30e183 1150w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Blowout-Kill/Screenshot-2024-05-15-at-14.07.17.png?auto=compress%2Cformat&crop=focalpoint&cs=srgb&fit=crop&fp-x=0.5&fp-y=0.5&h=857&q=75&w=1200&s=a82a479f366db90f97b7631e881c4d9a 1200w)
