Annular Fluid Expansion
Secure well integrity with Oliasoft WellDesign's Annular Fluid Expansion module
Oliasoft WellDesign's Annular Fluid Expansion (AFE) module is engineered to address the challenges posed by fluctuating fluid temperatures during well operations. By accurately predicting fluid expansion and contraction, the AFE module mitigates the risk of well integrity incidents.

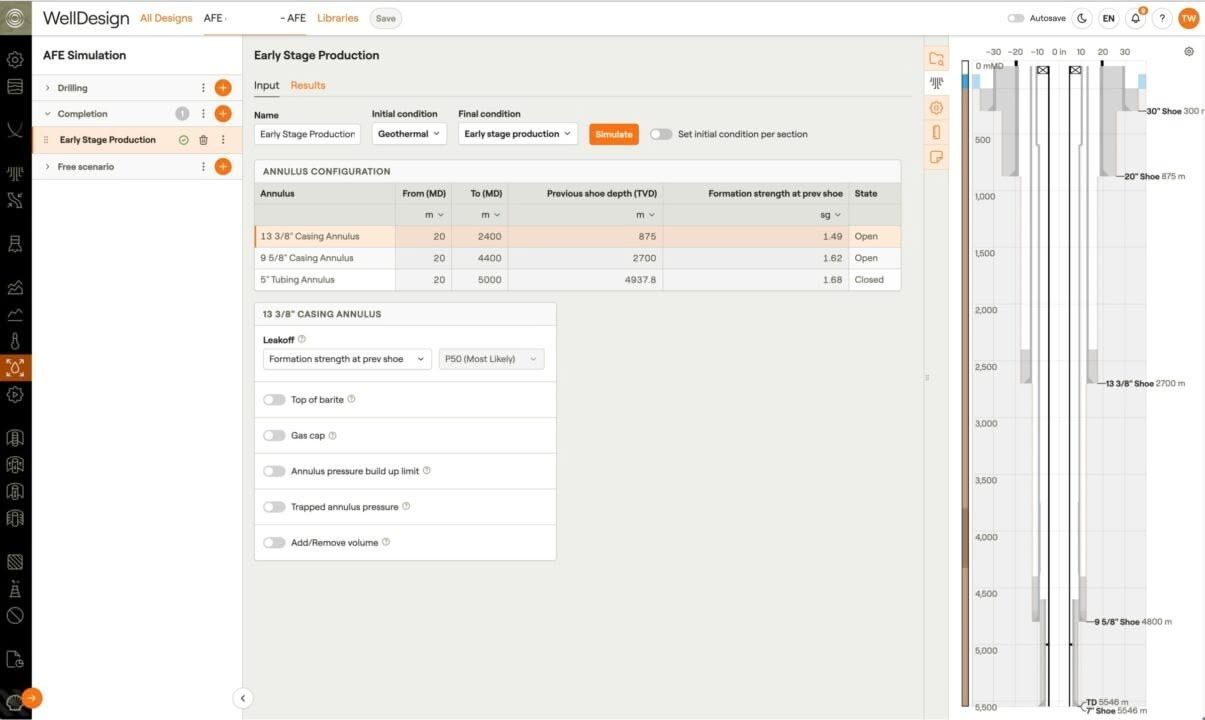

![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/AFE-module/Annular-fluid-expantion-simulation-input.jpg?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=7fa82795532c58d34b8ebb825c756e94 603w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/AFE-module/Annular-fluid-expantion-simulation-input.jpg?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=456e5650ca368f36b09d69133784a39a 754w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/AFE-module/Annular-fluid-expantion-simulation-input.jpg?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=c0e986d8a4f1ad8aed4d642a6b498d34 904w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/AFE-module/Annular-fluid-expantion-simulation-input.jpg?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=4b4ff913b28754df8dfcb78b14908ad4 1055w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/AFE-module/Annular-fluid-expantion-simulation-input.jpg?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=8362c4d306f9703fbb6cebbcd74f9812 1206w)

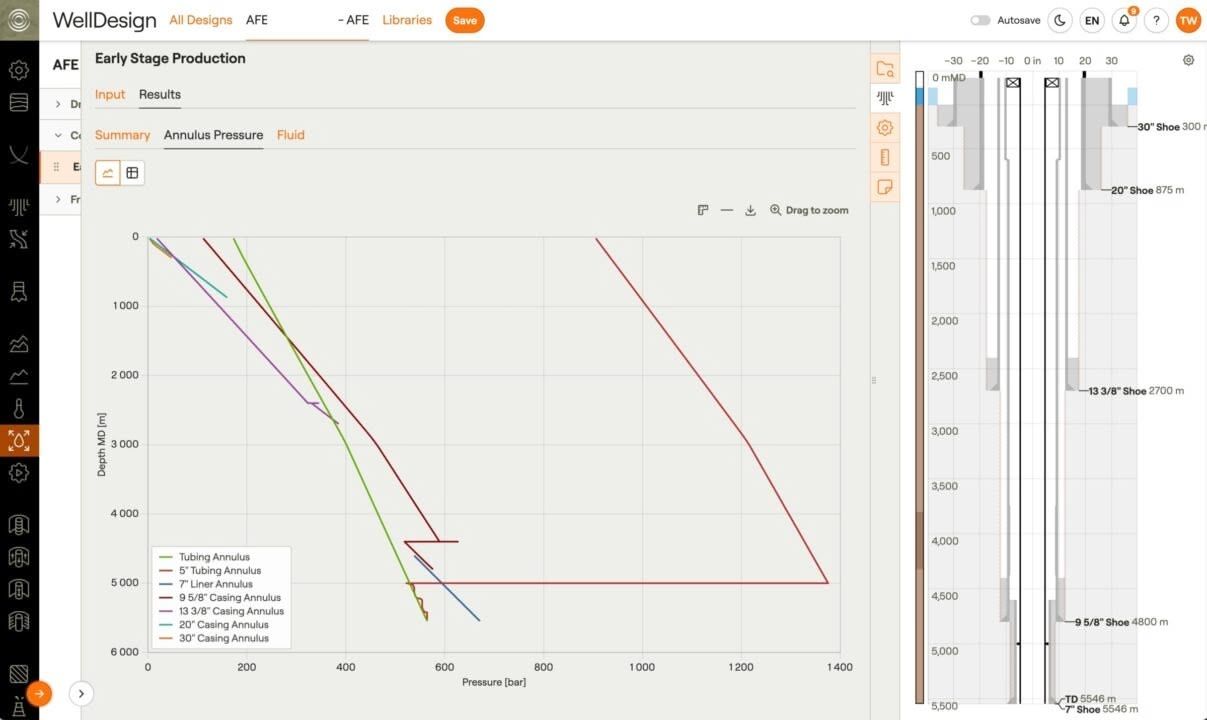

![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/AFE-module/Annular-fluid-expantion-results.jpg?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=7e3b9ad4f1405b0fc6c7bd1dc086d06e 604w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/AFE-module/Annular-fluid-expantion-results.jpg?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=82524d5c1f1aedd7f64ddc33be12683f 755w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/AFE-module/Annular-fluid-expantion-results.jpg?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=abd74dec0703ec18014ba350049a3bdd 906w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/AFE-module/Annular-fluid-expantion-results.jpg?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=be62eb2741b7e8a64d40c3b8886a8e90 1057w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/AFE-module/Annular-fluid-expantion-results.jpg?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=2ad28ac780a4c4e6aa1998e9d55aad07 1208w)
Unique advantages when using the AFE module
Comprehensive Results
Unlike competing software, Oliasoft WellDesign provides detailed results, offering engineers a comprehensive understanding of their designs. From volumetric change of the annulus geometry to initial and final condition fluid volumes, users gain invaluable insights to inform their decision-making process.
Flexible Simulation Options
Our AFE module offers a range of advanced simulation capabilities, including the ability to chain multiple AFE simulations or set initial temperature conditions per section. Engineers can also bleed off or top up fluid to relevant annuli by using the add/remove volume feature. The AFE module offers the option to set a "Top of barite" and simulation settings such as including or excluding formation ballooning effects in your simulations.
Enhanced Workflow
With Oliasoft WellDesign, engineers experience an optimized workflow and enhanced user experience. Our platform features an intuitive interface that streamlines the design process, enabling faster iterations and more informed design choices. Integrated trajectory and well schematic functionalities minimize manual data entry, saving valuable time and reducing errors, ultimately allowing engineers to work efficiently and effectively.
Transparent Methodology
We pride ourselves on transparency, openly sharing our calculation methodologies and key assumptions with our users. This transparency fosters trust and confidence in our software, empowering engineers to make informed decisions with complete clarity.
